點擊圖片查看原圖產品價格 面議
最小起訂量：10 片 可售數量：100 片
WIFI快速漫游網卡
￥400.00/片

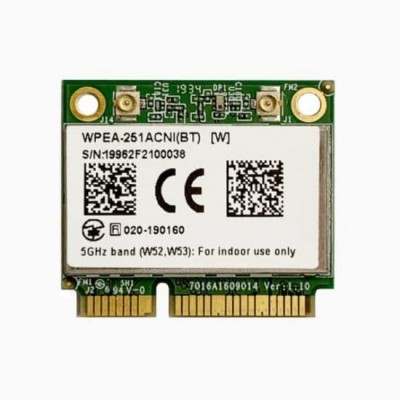

企業名片WPEA-251ACNI(BT) 是高性能 802.11ac/a/b/g/n 雙頻 2T2R 工業級 (-40°C ~85°C) Wi-Fi combo mini PCIe 模塊 (WiFi 5)，多輸入輸出 ( MU-MIMO） IEEE 802.11ac/a/b/g/n WLAN 標準，旨在提供 WLAN 和低能耗技術的集成。
WPEA-251ACNI(BT)支持 Windows 和 Linux 驅動程序解決方案。
WPEA-251ACNI(BT) 使用 QCA6174A-5 以及 Windows 和 Linux 驅動程序，為自動化/機器人AGV各種應用提供出色的解決方案。WPEA-251ACNI(BT) 是 2.4GHz+5GHz 的雙頻 AC 。N模式下載速度為300Mbps，AC模式下載速度為867Mbps。WPEA-251ACNI(BT) 集成了BT傳輸技術，用于短距離設備之間的語音和數據傳輸。
STANDARD |
||
| WI-FI | IEEE 802.11ac/a/b/g/n | |
| Chipset | Qualcomm Atheros QCA6174A-5 | |
| Host Interface | WLAN : PCIe | |
RADIO |
||
| Antenna | 2 x IPEX MHF1 connectors | |
| Operating Frequency | 802.11ac/a/b/g/n ISM Band | |
| 2.412GHz~2.484GHz
5.150GHz~5.850GHz *Subject to local regulations |
||
MODULATIONS |
||
| 802.11b | DSSS (DBPSK, DQPSK, CCK) | |
| 802.11g | OFDM (BPSK, QPSK, 16-QAM, 64-QAM) | |
| 802.11n | OFDM (BPSK, QPSK, 16-QAM, 64-QAM) | |
| 802.11a | OFDM (BPSK, QPSK, 16-QAM, 64-QAM) | |
| 802.11ac | OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM) | |
POWER & SENSITIVITY |
||
| WiFi | Power – TX (± 2dBm) | Sensitivity – RX |
| 11b @11Mbps | 18dBm | ≤ -86dBm |
| 11g @ 54Mbps | 14.5dBm | ≤ -72dBm |
| 11gn HT20 @ MCS 7 | 14dBm | ≤ -68dBm |
| 11gn HT40 @ MCS 7 | 13.5dBm | ≤ -66dBm |
| 11a @ 54Mbps | 11.5dBm | ≤ -71dBm |
| 11an HT20 @ MCS 7 | 11dBm | ≤ -68dBm |
| 11an HT40 @ MCS 7 | 10dBm | ≤ -67dBm |
| 11ac VHT80 @ MCS 9 | 6.5dBm | ≤ -57dBm |
POWER CONSUMPTION |
||
| Continue TX | 626mA | |
| Continue RX | 286mA | |
ENVIRONMENTAL |
||
| Operating Voltage | DC 3.3V | |
| Temperature Range | -40~ 85°C (Operating) | -45 ~ 90°C (Storing) |
| Humidity(Non-Condensing) | 5 ~ 90% (Operating) | 5 ~ 90% (Storing) |
SIZE |
||
| Dimension (MM) | 29.85mm(±0.3mm) x 26.65mm(±0.3mm) x 3.2mm(±0.3mm) | |
| Weight | 4.5g | |
SOFTWARE |
||
| Driver | Windows 7/8.1/10 | |
| Linux (Open Source), Recommend Kernel v4.0+ | ||
| Security | 64/128-bits WEP, WPA, WPA2, WPA3, 802.1x | |
Miscellaneous |
||
| Warranty Period | 12 Month | |
| HS Code | 8517620050 | |
 |
 |
 |
 |
||
| USA | EU Region | Japan | Canada |
